Cast steel and steel component samples.

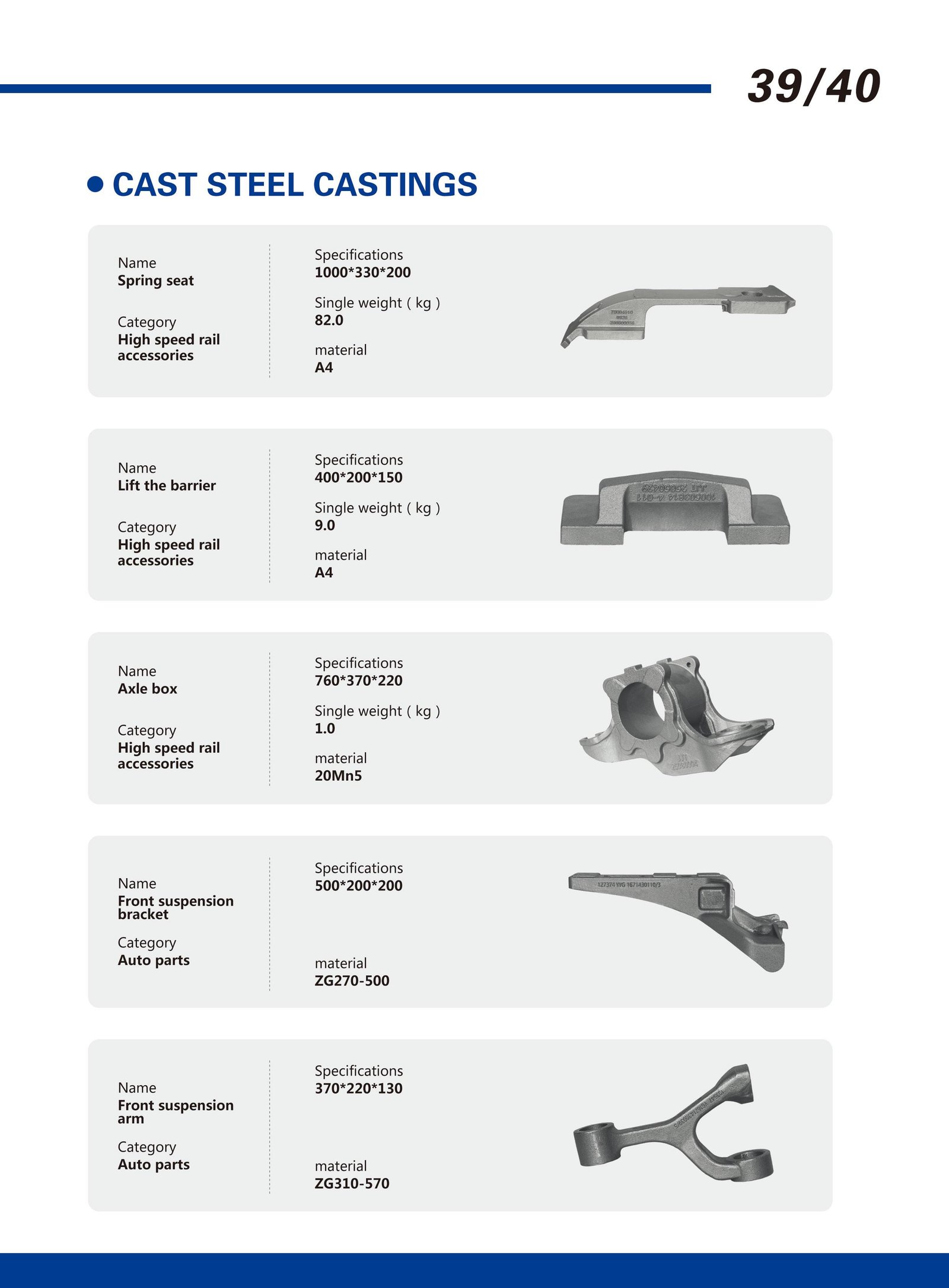

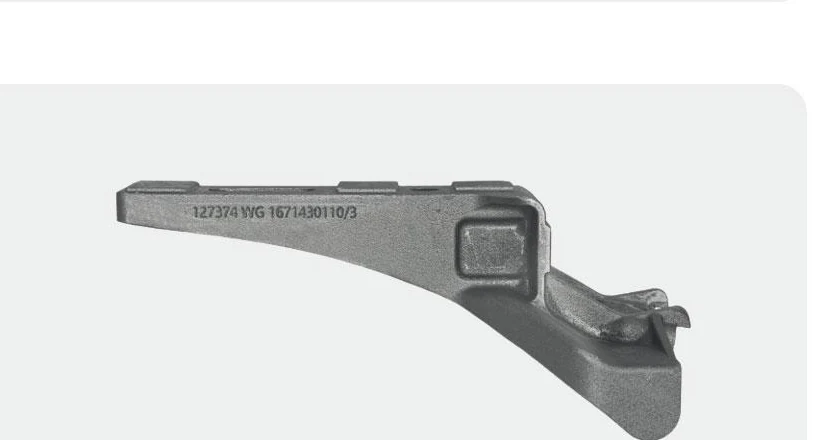

These are supplied casting examples, not catalog model numbers. Dimension order and units are not stated. The axle-box row prints 760*370*220 and 1.0 kg; this potentially inconsistent combination is preserved exactly and requires supplier confirmation. The two front-suspension rows do not state weight. Confirm referenced material standards and grades, approved drawings, tolerances, casting and machining scope, heat treatment, inspection plan and acceptance criteria before quotation or production.

Catalog page 41 is headed DUCTILE IRON CASTINGS, but every printed material is a ZG or GS cast-steel designation. The records are therefore placed on the cast-steel page while the heading conflict is disclosed. Confirm the intended material family, referenced material standard and grade with the supplier before quotation or production; also confirm drawing revision, units, tolerances, casting and machining scope, heat treatment and inspection criteria.

These are supplied casting examples, not catalog model numbers. Dimension order and units are not stated. Material symbols are reproduced as printed and do not establish the governing national or customer standard. Confirm exact grade equivalence, approved drawing, tolerances, casting and machining scope, heat treatment, inspection plan and acceptance criteria before quotation or production.

Catalog page 43 is headed DUCTILE IRON CASTINGS, but every printed material is 25MnNi or a ZG cast-steel designation. The records are placed on the cast-steel page while the conflict is disclosed. The gripper-tube specification includes a trailing period in the source, and the combined wedge-clamp/tongue-piece notation is not separated into independently confirmed dimensions. Confirm material family, governing standard, drawing revision, units, tolerances, heat treatment and inspection criteria with the supplier.

These are supplied casting examples, not catalog model numbers. Dimension order and units are not stated. Material symbols are reproduced as printed and do not establish the governing standard, delivery condition or heat treatment. Confirm exact grade and standard, approved drawings, tolerances, casting and machining scope, heat treatment, inspection plan and acceptance criteria before quotation or production.

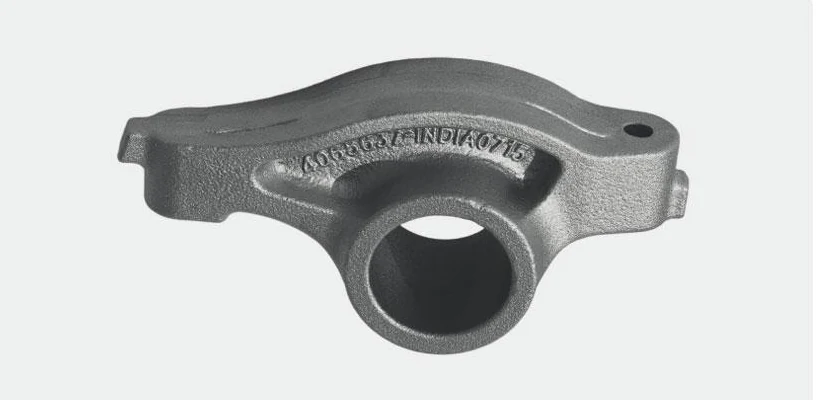

Catalog page 45 is headed DUCTILE IRON CASTINGS, but its printed materials are 42CrMo, GE280 and 25MnNi. The records are placed on the cast-steel/steel-casting page while the conflict is disclosed. GE280 is retained exactly as a source material designation; confirm the governing historical or customer specification and permitted current equivalent. Confirm all grades, delivery condition, drawings, units, tolerances, heat treatment and inspection criteria with the supplier.

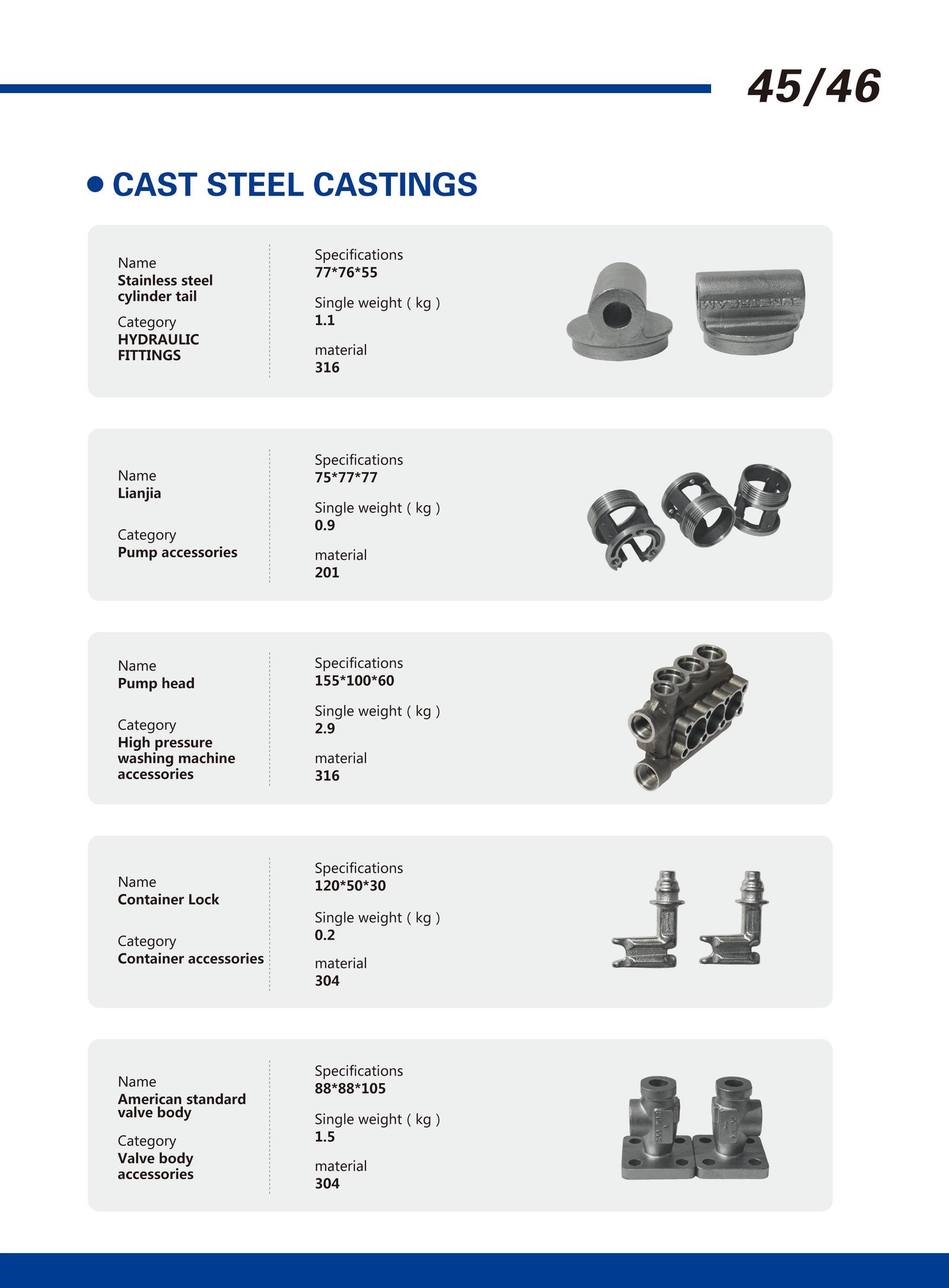

The source heading says CAST STEEL CASTINGS while every row prints stainless grade shorthand 201, 304 or 316. These records are described as stainless steel examples, but the governing grade standard, chemistry, casting-grade designation and corrosion requirements are not stated. American standard is only the supplied product name and does not identify a valve standard. Confirm alloy specification, casting grade, process, solution treatment/passivation, dimensions, pressure class, testing and acceptance criteria before quotation or production.
