Threaded Rod Accessories for industrial distribution, project purchasing and OEM supply, with material, finish and documentation agreed per quotation.
Pipe support hardware carries, guides or restrains piping while accommodating installation and service conditions. Pipe size, insulation, temperature, movement, load and support spacing must be evaluated together.

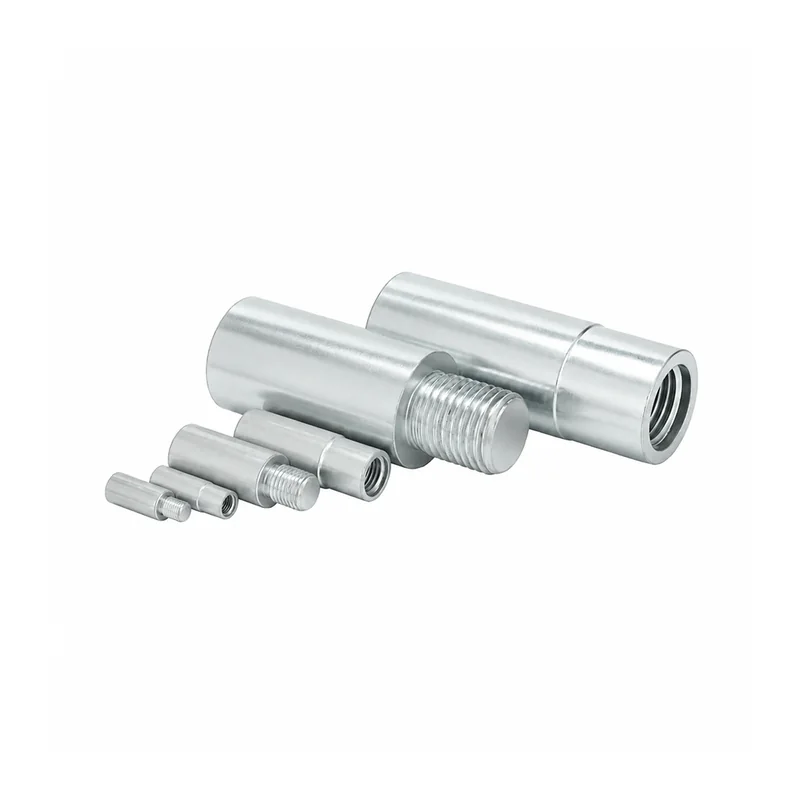

Most parts in this range are made or adapted for a drawing, sample, mating interface and order program. The image on this page represents the product family; final geometry, material, finish, inspection and marking are confirmed in the quotation.
Coupling nuts, hex nuts, washers, eye nuts, clevises, turnbuckles and rod hangers are small components with critical roles. Their thread series, grade and engagement must match the rod. A visually compatible nut can strip or bind when metric and inch threads, coarse and fine pitch, or incompatible coatings are mixed.
ASTM A307 covers selected carbon-steel bolts, studs and threaded rod, with suitable nuts addressed by ASTM A563; higher-strength or temperature duties require other grades. MSS SP-58 provides hanger-rod and accessory guidance. State rod diameter, thread series and class, tensile grade, finish, design load, temperature, adjustment range and whether the connection experiences bending. Galvanized rod requires nuts tapped for the coating system.
Inspect threads, start all connections by hand, achieve required full thread engagement, use jam or lock nuts where detailed and keep rods aligned. Do not weld nuts to rod, splice with ordinary short nuts, or heat-bend rod without an approved procedure. Can rod couplers be placed anywhere? Only where accessible and permitted by the detail. Do washers increase rod capacity? No; they distribute bearing. Can damaged threads be chased? Follow the acceptance/repair procedure, especially on load-bearing rods.
Research sources: ASTM A307 and A563 scope information; MSS SP-58 hanger-rod and accessory provisions. Grades and engagement remain per approved design.
Threaded Rod Accessories belongs to the pipe support component category. Material names, standards and coating descriptions below help buyers structure an RFQ; they are not a declaration that every offered configuration complies. Grade, edition, inspection level and acceptance criteria belong on the controlled drawing or purchase specification. (industry reference data, final values per drawing/quotation)
Carbon steel, stainless steel, malleable iron, ductile iron and elastomer-lined constructions are common depending on the support function. Base material, coating and liner must be compatible with one another and with the pipe and environment.
Use the tensile strength, yield or proof strength, elongation, hardness, impact and heat-treatment requirements published for the selected material grade. Relevant properties differ by product form and test-piece basis. They describe material quality, not the capacity of the finished Threaded Rod Accessories; final suitability depends on geometry, interfaces, manufacturing condition and verification.
Specify plain, zinc-coated, hot-dip galvanized, painted, passivated or another compatible finish by a recognized coating specification where applicable. Define preparation, appearance, restricted substances, repair rules, packaging and required inspection documents instead of relying on a color photograph.
| Reference | Standard name | How to use it |
|---|---|---|
| MSS SP-58 | Pipe Hangers and Supports — Materials, Design, Manufacture, Selection, Application, and Installation | Use as an RFQ reference only when applicable; edition, scope and acceptance evidence must be agreed. |
| MSS SP-69 | Pipe Hangers and Supports — Selection and Application | Use as an RFQ reference only when applicable; edition, scope and acceptance evidence must be agreed. |
| ASTM A36/A36M | Carbon Structural Steel | Use as an RFQ reference only when applicable; edition, scope and acceptance evidence must be agreed. |
| ASTM B633 | Electrodeposited zinc coatings on iron and steel | Use as an RFQ reference only when applicable; edition, scope and acceptance evidence must be agreed. |
| ISO 1461 | Hot dip galvanized coatings on fabricated iron and steel articles | Use as an RFQ reference only when applicable; edition, scope and acceptance evidence must be agreed. |
| EN 10204 | Metallic products — Types of inspection documents | Use as an RFQ reference only when applicable; edition, scope and acceptance evidence must be agreed. |
Specification caution: naming a material, coating or dimensional standard does not create a product rating, approval, certification or warranty. Any required capacity, pressure class, temperature limit, listing or test must be confirmed for the exact quoted part. (industry reference data, final values per drawing/quotation)
Selection for Threaded Rod Accessories should begin with pipe outside diameter, insulation, support function, movement, attachment interface, corrosion environment and complete assembly design. Keep required facts separate from supplier proposals so reviewers can see what is mandatory and what remains open. (industry reference data, final values per drawing/quotation)
| Decision | Information to provide | Why it matters |
|---|---|---|
| Interface and geometry | Drawing, nominal or actual dimensions, tolerances, mating components, clearances, orientation and accessible assembly space. | Prevents selection from a family name or image and allows the complete connection to be checked. |
| Service condition | Function, direction of forces, movement, vibration, indoor or outdoor exposure, moisture, chemicals and maintenance access. | Guides material, finish, locking, restraint and inspection choices without inventing an unverified rating. |
| Compliance route | Destination market, governing code, required standard edition, customer specification, marking and third-party approval needs. | Separates a generally suitable design from a configuration qualified for a regulated project. |
| Supply and quality | Quantity, release pattern, drawing revision, critical characteristics, sampling, traceability, packaging and documents. | Aligns manufacturing and inspection with the commercial requirement and repeat-order control. |
Ask the supplier to identify exclusions and assumptions in the quotation. Compare offers against the same revision and requirement list; a lower price is not comparable if material, coating, inspection, packaging or documentation scope differs. Final commercial values remain per quotation.
(industry reference data, final values per drawing/quotation)
Match labels, part identity, material or heat references where required, quantity and documents to the purchase order. Quarantine mixed, damaged, corroded or unidentifiable pieces instead of releasing them to installation.
Verify the actual mating dimensions, thread or connection form, contact surfaces, orientation and working clearance. Clean protective debris without removing functional coatings or altering critical edges.
Confirm pipe size, support location, insulation and movement allowances before fitting. Keep rods plumb where required, seat the pipe evenly, avoid point contact and over-compression of liners, install locking hardware, and inspect the complete load path from structure to pipe. Any torque, clearance, sealant, gasket, lubrication or locking value must come from the approved instruction for the exact product.
Record completion where the quality plan requires it. Inspect for seating, alignment, locking, leakage where relevant, coating damage and interference. Establish service checks from the system risk assessment and replace parts that fail the applicable acceptance criteria.
Compare clamps, clevis hangers, riser clamps, U-bolts, brackets and support assemblies by whether they restrain, guide, suspend or support the pipe and whether thermal movement must remain free. Compatibility includes the mating dimensions, material couple, coating, fastener or seal system, installation method, inspection basis and service environment. (industry reference data, final values per drawing/quotation)
Best when an established size, connection and documented product scope match the application. Confirm the exact designation and do not extend published information to another variant.
Useful when the required function or interface differs. Review the whole assembly, because an alternative component can move forces, change clearances or require different accessories and installation controls.
Consider when geometry, material, marking, finish or packaging cannot be met by a standard item. Freeze the drawing, validation plan and change-control route before repeat production.
(industry reference data, final values per drawing/quotation)
No. The reference helps define material, dimensions, coating, test method or use practice within its own scope. Compliance requires the applicable edition, product configuration, acceptance criteria and agreed evidence. A standards list on a general webpage is not a certificate.
Name the material standard, grade, product form, heat-treatment condition where relevant, required inspection document and any supplementary tests. Use the values in the governing published standard rather than copying an isolated number. Finished-product capacity or performance still requires design and verification for the exact geometry.
Provide a legible drawing or complete dimensional description, application and mating parts, material and finish, quantity and release schedule, destination market, required standards, critical characteristics, marking, packaging and document needs. Identify any requirement that cannot change.
Only after technical and commercial review. A substitute can change strength, ductility, corrosion behavior, friction, thread fit, coating thickness, galvanic compatibility, manufacturing route and inspection evidence. Record an approved deviation before production.
Request verified data for the exact part number, revision, material, assembly orientation and mating components. The quotation or approved technical package should state the applicable basis. This page intentionally supplies no invented load, pressure, temperature or price values.
Check identity, quantity, revision, obvious damage, corrosion protection, critical dimensions and the documents named in the purchase order. Sampling, gauges and acceptance limits should be agreed in the quality plan. Keep nonconforming items segregated pending disposition.
A custom route is appropriate when the standard interface, geometry, material, finish, marking, inspection or packaging cannot satisfy the application. Provide annual demand and validation expectations so tooling, casting, forging, stamping, machining or fabrication options can be reviewed.
Reference the approved drawing revision and agreed specification, preserve approved samples or inspection records as appropriate, and require notification before material, process, tooling or supplier changes that affect critical characteristics. Reconfirm requirements after a design or application change.
Representative product-family image. Final geometry, material, finish and marking follow the approved drawing and quotation.
Threaded Rod Accessories for industrial distribution, project purchasing and OEM supply, with material, finish and documentation agreed per quotation.
| Product family | Pipe Hangers & Support Hardware |
|---|---|
| Supply route | Standard configuration or made to requirement |
| Materials & finish | Carbon steel, cast iron, stainless steel and elastomer-cushioned options with zinc, galvanized or specified finishes. |
| Applications | Plumbing, HVAC, fire protection, industrial process piping and mechanical plant installations. |
| Documentation | Inspection, traceability and shipment records agreed per quotation |
Define this requirement on the drawing or RFQ so the offered configuration can be checked.
Define this requirement on the drawing or RFQ so the offered configuration can be checked.
Define this requirement on the drawing or RFQ so the offered configuration can be checked.
Define this requirement on the drawing or RFQ so the offered configuration can be checked.
We review geometry, interfaces, service environment and critical characteristics before confirming the supply route.
Casting, forging, machining, stamping, fabrication and finishing are matched to part geometry and repeat volume.
Material checks, dimensional inspection, surface review and agreed records are defined around the quoted part.
Standards note: referenced standards, ratings and certifications vary by product and market. State every required standard in the RFQ; no rating should be inferred from a category image or general description.
Threaded Rod Accessories are part of the pipe hangers & support hardware family. Pipe support hardware carries, guides or restrains piping while accommodating installation and service conditions. Pipe size, insulation, temperature, movement, load and support spacing must be evaluated together.
Provide a drawing, dimensions or reference part number, plus material, finish, quantity, application, destination market and documentation needs.
Carbon steel, cast iron, stainless steel and elastomer-cushioned options with zinc, galvanized or specified finishes. Availability is confirmed against the exact geometry, quantity and service conditions.
Check pipe od and insulation, support function and movement, temperature and environment, rod, bracket and structural interface. Final suitability must be verified against the quoted product data and application.
Yes. Drawing-based development can cover geometry, material, machining, finish, marking, packing and inspection requirements, subject to manufacturing review.
Required inspection and shipment documents should be listed in the RFQ. Applicable records are agreed before order confirmation.
Every visible value below was transcribed from the supplied PDF and checked against the high-resolution source.
| Rod size | 6 ft bundle (ft) | 1.83 m bundle (m) | 10 ft bundle (ft) | 3.05 m bundle (m) | 12 ft bundle (ft) | 3.66 m bundle (m) | Max. rec. load at 650°F / 343°C (lb) | 650°F load (kN) | Max. rec. load at 750°F / 399°C (lb) | 750°F load (kN) | Weight/ft (lb) | Weight/ft (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4-20 | 300 | 91.44 | 500 | 152.4 | 600 | 182.88 | 240 | 1.07 | 188 | 0.84 | 0.12 | 0.05 |
| 3/8-16 | 150 | 45.72 | 250 | 76.2 | 240 | 73.15 | 730 | 3.25 | 572 | 2.54 | 0.29 | 0.13 |
| 1/2-13 | 72 | 21.95 | 120 | 36.58 | 144 | 43.90 | 1350 | 6.01 | 1057 | 4.70 | 0.54 | 0.25 |
| 5/8-11 | 48 | 14.63 | 80 | 24.38 | 96 | 29.26 | 2160 | 9.61 | 1692 | 7.52 | 0.83 | 0.38 |
| 3/4-10 | 30 | 9.14 | 50 | 15.24 | 60 | 18.29 | 3230 | 14.37 | 2530 | 11.25 | 1.25 | 0.57 |
| 7/8-9 | 24 | 7.32 | 40 | 12.19 | 48 | 14.63 | 4480 | 19.93 | 3508 | 15.61 | 1.65 | 0.75 |
| 1-8 | 13 | 3.66 | 20 | 6.10 | 24 | 7.32 | 5900 | 26.24 | 4620 | 20.55 | 2.25 | 1.02 |
Catalog dimensions are sourcing references. Confirm tolerances, rated load, material grade and finish on the approved quotation or production drawing.
