Model labels and visible dimensions come from the supplied HBHT catalog. Final drawings, tolerances, material certificates and performance values are confirmed per quotation.
Every visible value below was transcribed from the supplied PDF and checked against the high-resolution source.

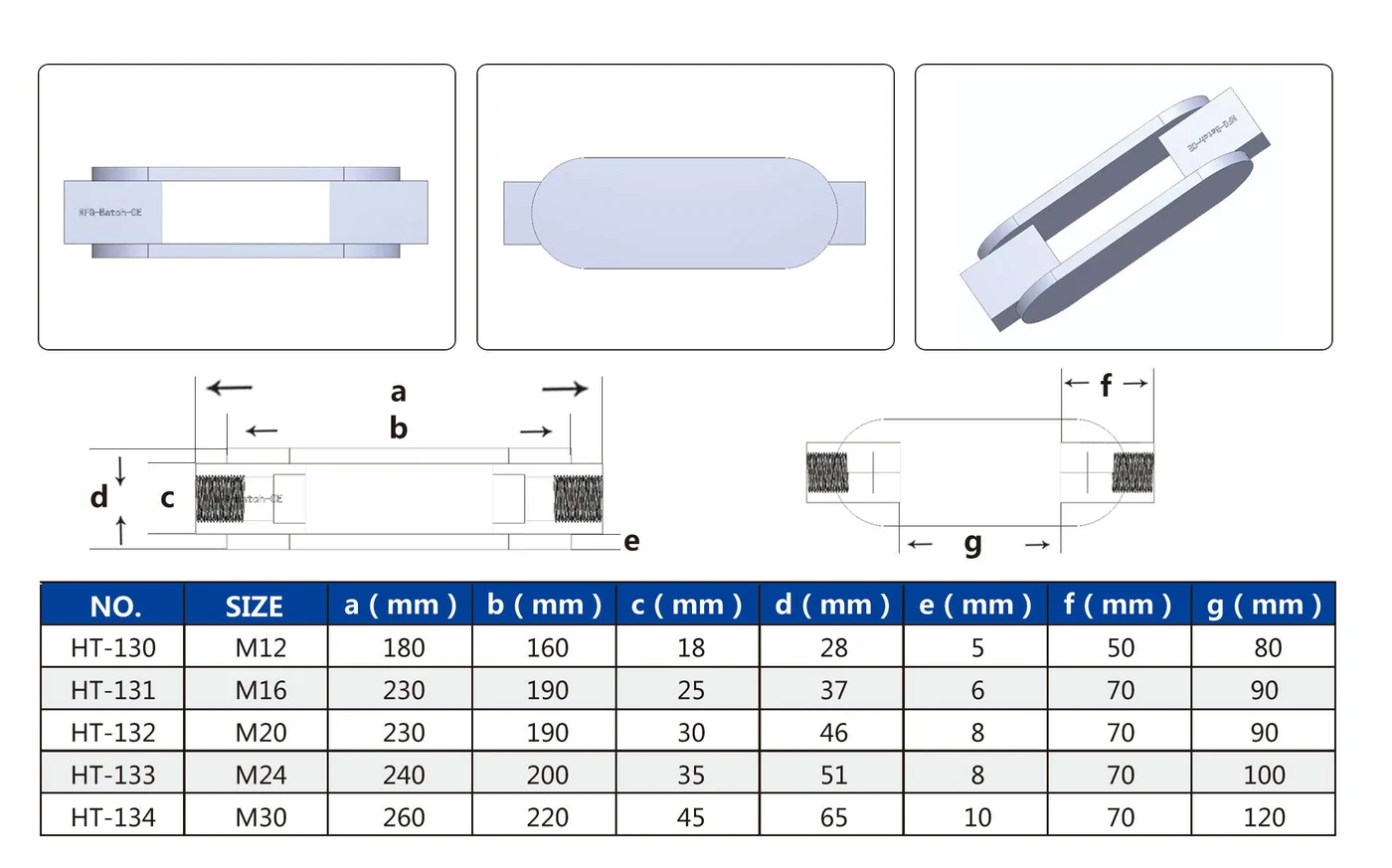

| Model | Size | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | g (mm) |
|---|---|---|---|---|---|---|---|---|
| HT-130 | M12 | 180 | 160 | 18 | 28 | 5 | 50 | 80 |
| HT-131 | M16 | 230 | 190 | 25 | 37 | 6 | 70 | 90 |
| HT-132 | M20 | 230 | 190 | 30 | 46 | 8 | 70 | 90 |
| HT-133 | M24 | 240 | 200 | 35 | 51 | 8 | 70 | 100 |
| HT-134 | M30 | 260 | 220 | 45 | 65 | 10 | 70 | 120 |
Catalog dimensions are sourcing references. Confirm tolerances, rated load, material grade and finish on the approved quotation or production drawing.
| Model | Size | a (mm) | b (mm) | c (mm) | d (mm) | R (mm) |
|---|---|---|---|---|---|---|
| HT-135 | M20 | 50 | 21 | 23 | 20 | 25 |
| HT-136 | M24 | 50 | 26 | 29 | 19 | 25 |
| HT-137 | M27 | 50 | 29 | 31 | 19 | 25 |
| HT-138 | M30 | 64 | — | 32 | 20 | 25 |
Catalog dimensions are sourcing references. Confirm tolerances, rated load, material grade and finish on the approved quotation or production drawing.
Every visible value below was transcribed from the supplied PDF and checked against the high-resolution source.

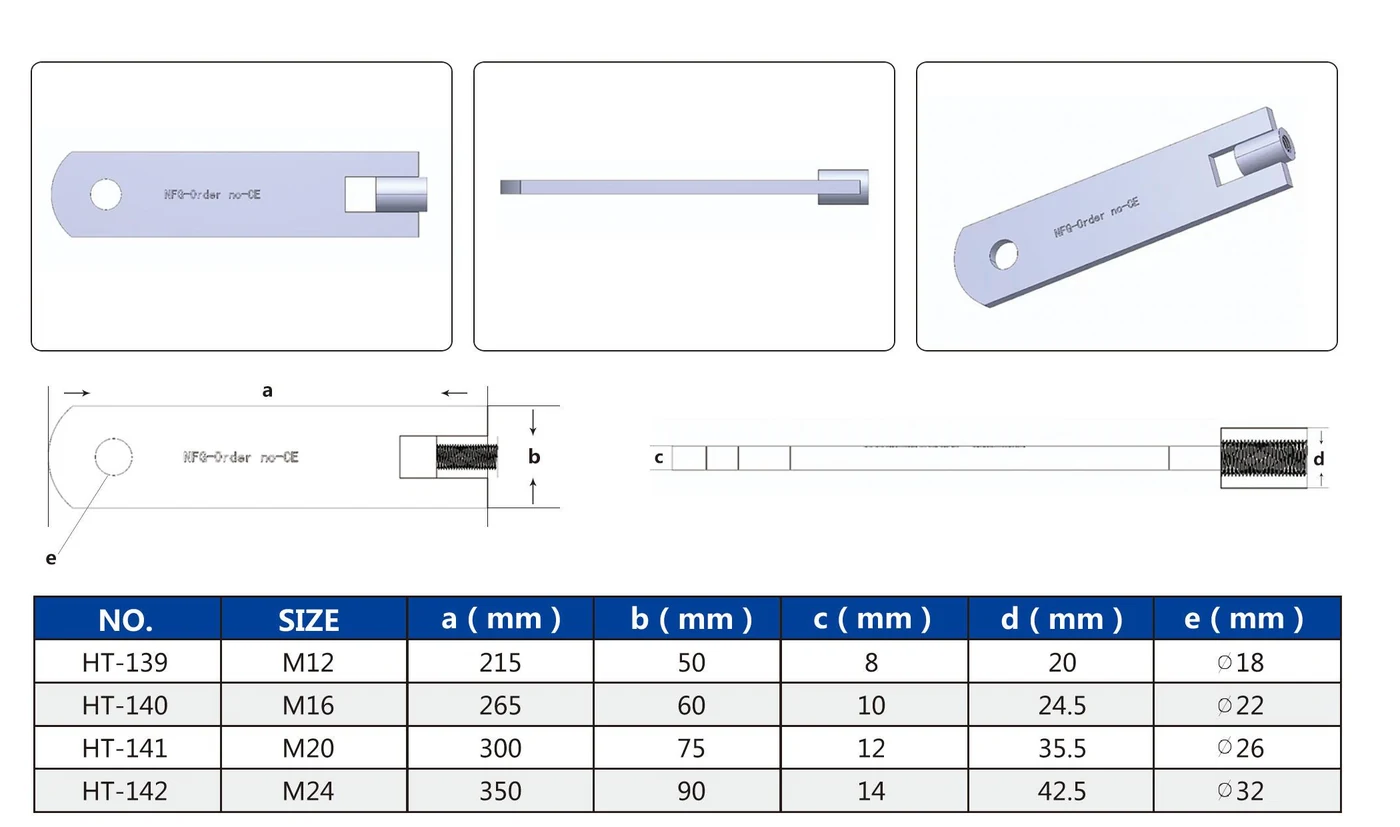

| Model | Size | a (mm) | b (mm) | c (mm) | d (mm) | e hole (mm) |
|---|---|---|---|---|---|---|
| HT-139 | M12 | 215 | 50 | 8 | 20 | Ø18 |
| HT-140 | M16 | 265 | 60 | 10 | 24.5 | Ø22 |
| HT-141 | M20 | 300 | 75 | 12 | 35.5 | Ø26 |
| HT-142 | M24 | 350 | 90 | 14 | 42.5 | Ø32 |
Catalog dimensions are sourcing references. Confirm tolerances, rated load, material grade and finish on the approved quotation or production drawing.
| Model | Size | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | g (mm) | h (mm) |
|---|---|---|---|---|---|---|---|---|---|
| HT-143 | M16 | 212 | 37 | 25 | 6 | 70 | 50 | 192 | 18 |
| HT-144 | M20 | 21 | 46 | 30 | 8 | 70 | 60 | 192 | 22 |
| HT-145 | M24 | 230 | 51 | 35 | 8 | 80 | 65 | 210 | 26 |
| HT-146 | M30 | 265 | 65 | 45 | 10 | 100 | 85 | 230 | 32 |
Catalog dimensions are sourcing references. Confirm tolerances, rated load, material grade and finish on the approved quotation or production drawing.
Every visible value below was transcribed from the supplied PDF and checked against the high-resolution source.
| Model | Rebar size | M | M1 | ØD +0.5/0 (mm) | ØD1 +0.5/0 (mm) | Ød +0.5/0 (mm) | L (mm) | N +0.8/0 (mm) | e (mm) | e1 ±0.8 (mm) | e2 ±0.8 (mm) | P +1/0 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HT-147 | 10 | M12 | M14×2 | 17.5 | 16.1 | 12 | 50 | 16 | 18 | 14 | 12 | 30 |
| HT-148 | 12 | M16 | M16×2 | 22 | 21.7 | 14.5 | 60 | 21 | 23 | 18.5 | 16.5 | 33 |
| HT-149 | 14 | M18 | M18.5×2.5 | 26 | 24.8 | 17 | 68 | 23 | 25 | 20.5 | 18.5 | 37 |
| HT-150 | 16 | M20 | M21×2.5 | 28 | 26.8 | 19 | 77 | 25 | 27 | 22.5 | 19.5 | 42 |
| HT-151 | 18 | M22 | M24×3 | 31 | 29.0 | 22 | 87 | 28 | 30 | 25 | 22 | 49 |
| HT-152 | 20 | M24 | M25.5×3 | 34 | 32.6 | 23.5 | 94 | 30 | 32 | 27 | 24 | 53 |
| HT-153 | 22 | M27 | M27×3 | 38 | 36.6 | 25 | 101 | 32 | 35 | 30 | 27 | 56 |
| HT-154 | 25 | M30 | M31×3.5 | 42 | 40.4 | 29 | 114 | 35 | 38 | 33.5 | 30 | 64 |
| HT-155 | 26 | M30 | M33×3.5 | 44 | 41.5 | 30 | 118 | 35 | 38 | 33.5 | 30 | 68 |
| HT-156 | 28 | M33 | M33×3.5 | 46 | 44.6 | 31 | 125 | 37.5 | 41 | 36.5 | 33 | 71 |
| HT-157 | 30 | M36 | M36×4 | 50 | 48.5 | 34 | 138 | 41 | 45 | 40 | 36.5 | 77 |
| HT-158 | 32 | M42 | M39×4 | 57 | 57 | 36.5 | 149 | 47 | 51 | 46 | 41 | 84 |
| HT-159 | 34 | M42 | M42×4.5 | 58 | 58 | 38 | 160 | 47 | 51 | 46 | 41 | 90 |
| HT-160 | 40 | M48 | M48×5 | 67.5 | 65.7 | 45 | 180 | 54 | 58 | 53 | 47 | 104 |
Catalog dimensions are sourcing references. Confirm tolerances, rated load, material grade and finish on the approved quotation or production drawing.
