12 / Suspension Systems
Suspension System Fittings for drawing-led industrial sourcing.
Multi-geometry connection fittings supplied against confirmed member profiles, fasteners and load direction.
Product Types
5 suspension system fittings groups.
Names, dimensions, material, finish and application are confirmed for each quotation.
SF-01

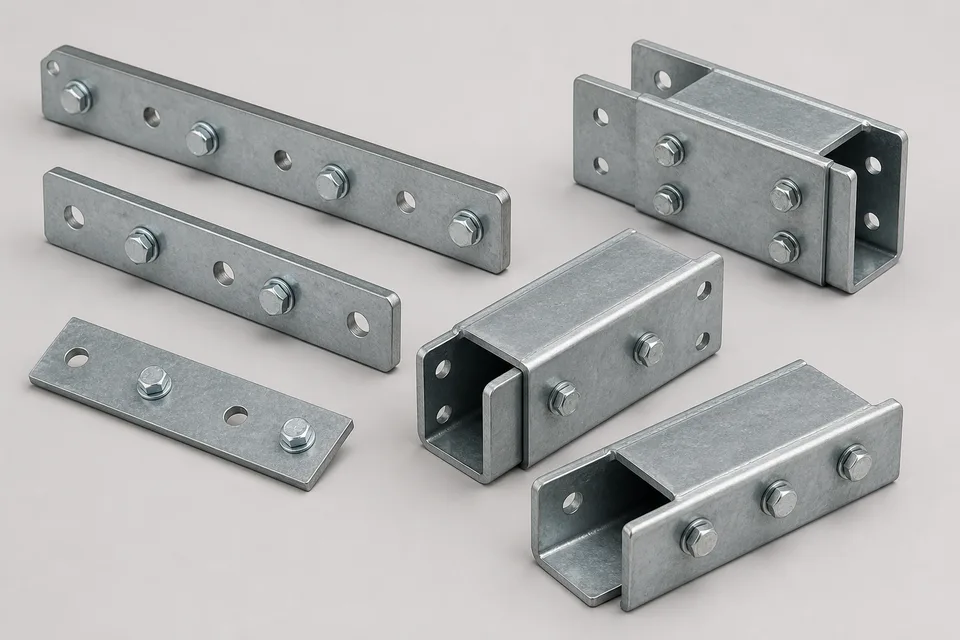

Straight Suspension Connectors
Straight connector geometry for confirmed suspension or frame assemblies.
View product
SF-02

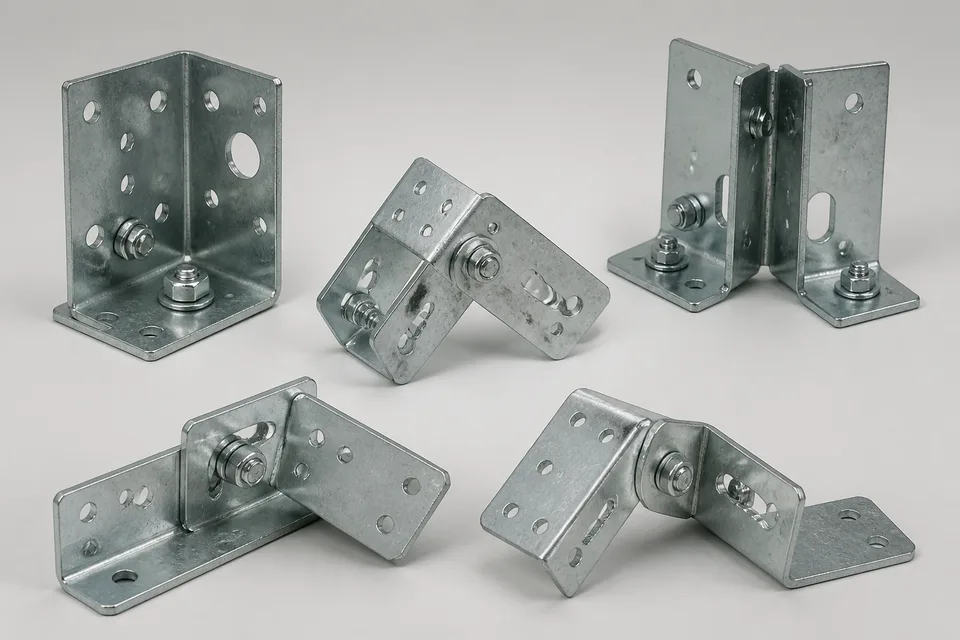

Angle Suspension Connectors
Angled connector geometry for confirmed suspension or frame assemblies.
View product
SF-03

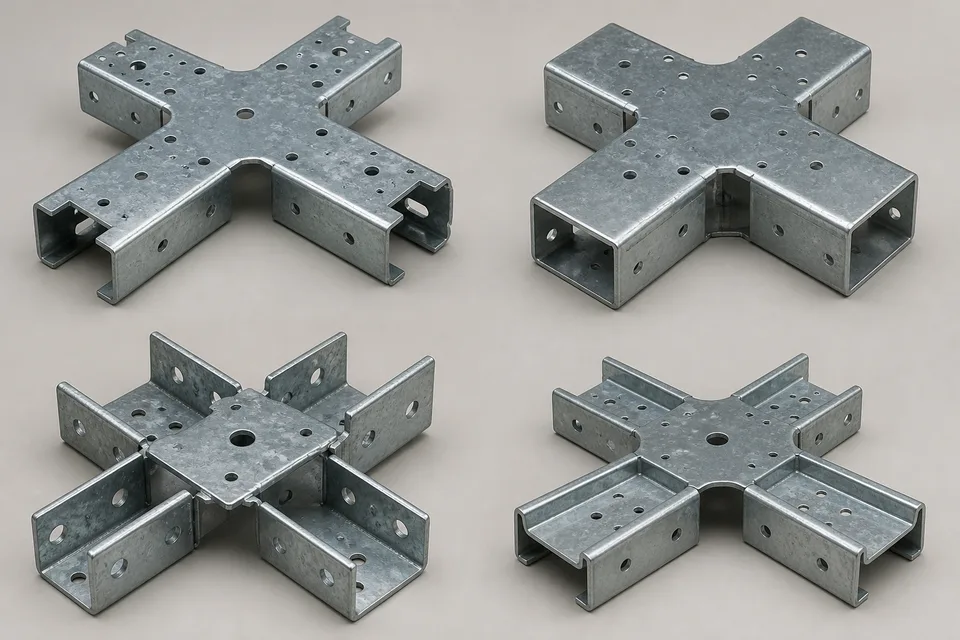

Four-Way Cross Connectors
Four-way cross connector geometry shown in multiple views.
View product
SF-04

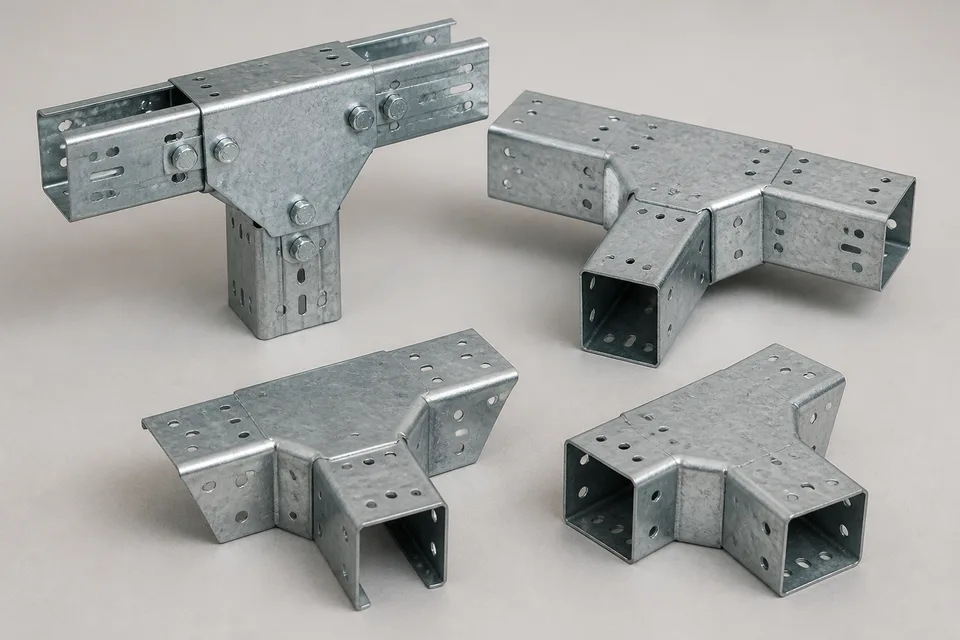

Three-Way Tee Connectors
Three-way tee connector geometry for confirmed member profiles.
View product
SF-05

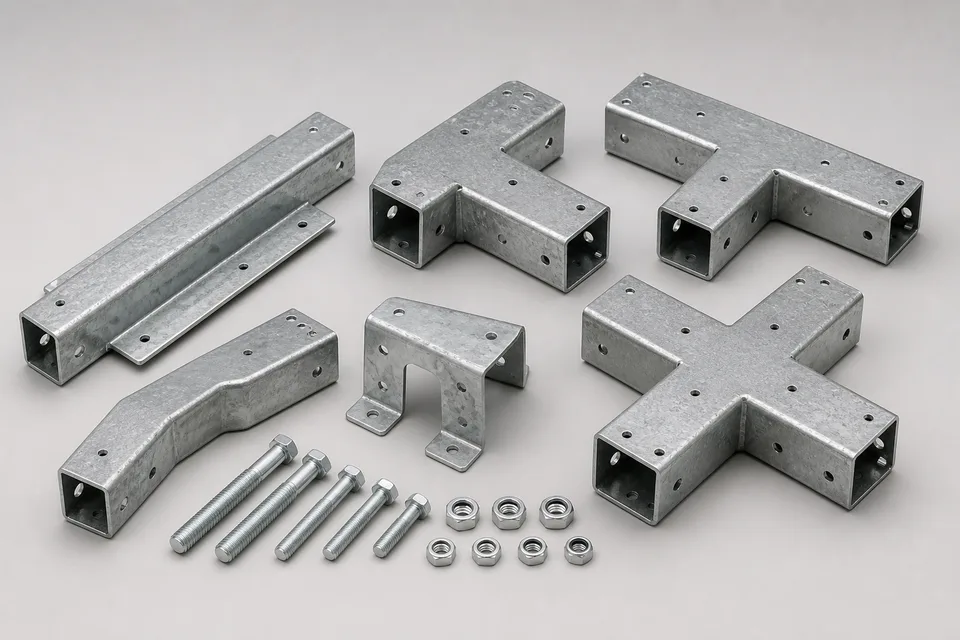

Multi-Way Suspension Fitting Sets
Grouped multi-way fitting forms supplied to a confirmed system specification.
View productBuyer’s Guide
How to specify Suspension System Fittings.
Quick answer
Provide the member profile and size, connection geometry, hole and fastener details, material, finish, load direction, quantity and drawing or sample reference.
Typical applications
Suspension and modular frame assemblies after the intended system name and loading conditions are verified.
Related sourcing route
Compare the adjacent established family when the application overlaps.
View related category
